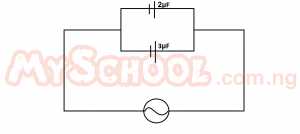

lf the frequency of the a.c. circuit illustrated is 500Hz/ π what would be the reactance in the circuit?
Attached Figure / Diagram
A
0.01Ω
B
190.91 Ω
C
200.00 Ω
D
795.46 Ω
E
1000.00Ω
Verified Correct Answer: C.
Physical Principles & Numerical Solution
C1 + C = 2 + 3 = 5μF
Capacitive reactance = 1/2πfc
X = 1/2π x 500 x 5 x 10-6 = 200
